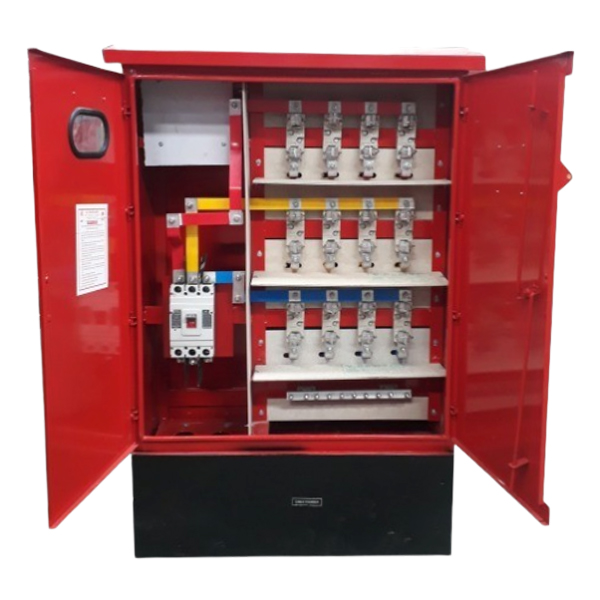

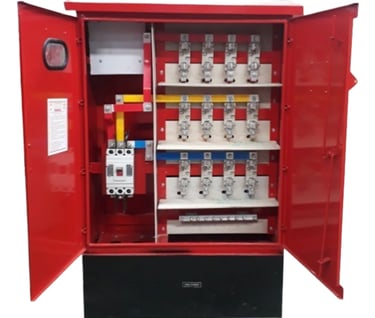

12-Way Feeder Pillar Box with Isolator
In the field of electrical power distribution feeder pillar boxes serve as crucial components to ensure safe and efficient power supply. One such significant variant is the 12-way feeder pillar box with an isolator. This advanced technology offers both protection and flexibility making it an indispensable asset in various industrial commercial and public infrastructure projects. In this article we will explore the key features benefits and applications of the 12-way feeder pillar box with isolator.
1. What is a Feeder Pillar Box?
A feeder pillar box is an enclosure used to distribute electricity from a power source to several outgoing circuits. It acts as a protective housing for various electrical components including fuses circuit breakers isolators and meters. Feeder pillar boxes are commonly used in power distribution networks to deliver electricity to localized areas.
2. The Role of an Isolator:
An isolator is a device used to disconnect an electrical circuit from its power source. It ensures that the circuit can be safely de-energized for maintenance repair or any other purpose. The inclusion of an isolator in a feeder pillar box provides an additional layer of safety by allowing isolation of specific circuits without disrupting the rest of the system.
3. Features of a 12-Way Feeder Pillar Box with Isolator:
a) Multiple Outgoing Circuits: The 12-way feeder pillar box can accommodate up to 12 outgoing circuits allowing for the distribution of power to a variety of loads.
b) Isolator Functionality: The built-in isolator offers the ability to disconnect individual circuits for maintenance or repair enhancing system safety.
c) Robust Enclosure: The pillar box is constructed with durable materials to ensure protection against weather conditions environmental factors and unauthorized access.
d) Cable Termination Points: The box includes cable termination points for incoming and outgoing cables facilitating secure and organized connections.
e) Metering Capability: Some models are equipped with integrated meters to measure the consumption of individual circuits providing better energy management and monitoring.
4. Benefits of a 12-Way Feeder Pillar Box with Isolator:
a) Enhanced Safety: The isolator enables safe isolation and maintenance of individual circuits minimizing the potential for electrical accidents.
b) Efficient Power Distribution: The 12-way configuration allows for an organized and efficient distribution of electricity preventing overloading and voltage irregularities.
c) Cost-Effective Solution: Consolidating multiple circuits into a single feeder pillar box reduces distribution infrastructure costs wiring complexity and installation time.
d) Space Optimization: With its compact design a 12-way pillar box occupies minimal space while accommodating a significant number of circuits.
e) Flexibility and Scalability: Feeder pillar boxes with isolators offer flexibility in adding or modifying circuits as per changing requirements ensuring adaptability for future expansions.
5. Applications of a 12-Way Feeder Pillar Box with Isolator:
a) Industrial Facilities: Feeder pillar boxes are widely used in industrial settings allowing efficient power distribution to machines equipment and different sections of a facility.
b) Commercial Buildings: Shopping malls office complexes and other commercial establishments benefit from the organized power distribution provided by the pillar boxes.
c) Public Infrastructures: Street lighting networks traffic signal systems and public parks are some examples where feeder pillar boxes with isolators are used for reliable power distribution.
Conclusion:
The 12-way feeder pillar box with isolator combines the benefits of efficient power distribution enhanced safety and flexibility. Its ability to accommodate multiple circuits along with the functionality of an isolator makes it an essential component in modern power distribution networks. As industries strive for optimized electrical infrastructure these pillar boxes continue to play a vital role in ensuring uninterrupted power supply while improving overall system safety.
Technical Specification
1. Overview
The 12-way feeder pillar box with isolator is a standard electrical distribution enclosure used for power distribution in industrial commercial and residential applications. It is designed to safely distribute electrical power from a main source to multiple sub-circuits or loads. This specification outlines the general requirements construction and features of the feeder pillar box.
2. Construction
2.1 Enclosure: The feeder pillar box shall be constructed using high-quality weatherproof materials such as galvanized steel or aluminum to ensure durability and protection against elements. The enclosure shall have a hinged door with lockable handles for secure access. It should also have appropriate gland plates for cable entry and exit points.
2.2 Size and Dimensions: The dimensions of the feeder pillar box shall comply with standard industry specifications. The enclosure shall be of sufficient size to accommodate 12 MCBs (Miniature Circuit Breakers) or other suitable protective devices.
2.3 Isolator: The feeder pillar box shall be equipped with a 3-pole 400V isolator with a rated current suitable for the maximum load capacity of the distribution system. The isolator should have visible indication for open/close position and be easily operable.
3. Electrical Specifications
3.1 Rated Voltage: The feeder pillar box shall be suitable for operation at a rated voltage of 400V AC (alternating current) system.
3.2 Rated Current: The feeder pillar box shall have a rated current capacity that matches the maximum load capacity required by the application. It is recommended to consult electrical design calculations to determine the appropriate rating.
3.3 Circuit Protection: The feeder pillar box shall provide reliable circuit protection through the use of MCBs or other suitable protective devices. Each circuit within the enclosure shall be individually protected to ensure selective fault isolation.
3.4 Earth Connection: The enclosure shall have provisions for adequate grounding. It should include a robust earthing terminal to ensure proper earthing of the entire system.
4. Environmental Protection
4.1 IP Rating: The feeder pillar box shall have a minimum IP Rating of IP54 providing adequate protection against dust and water ingress.
4.2 Weatherproofing: The enclosure shall be designed to withstand harsh outdoor environments including exposure to UV radiation rain moisture and temperature fluctuations. It should have suitable gaskets or seals to ensure a watertight and dustproof construction.
4.3 Ventilation: The feeder pillar box shall incorporate appropriate ventilation provisions to dissipate heat generated by the electrical components ensuring optimal operating conditions.
5. Safety Features
5.1 Secure Locking: The enclosure shall have lockable handles to prevent unauthorized access and ensure safety.
5.2 Warning Labels: The feeder pillar box should have clear warning labels indicating the presence of high voltage and live electrical components. These labels should be placed in visible locations to increase safety awareness.
6. Testing and Certification
The feeder pillar box shall comply with relevant industry standards and regulations such as IEC 61439 and BS EN 60947. It should undergo rigorous testing to ensure proper functioning electrical insulation and safety. The manufacturer should provide test reports and certifications indicating compliance with the specified requirements.
7. Installation and Maintenance
The feeder pillar box shall be installed by qualified electrical personnel in accordance with local electrical codes and regulations. Adequate clearances should be maintained around the enclosure for safe operation and maintenance. It is recommended to periodically inspect and maintain the feeder pillar box to ensure its performance and reliability.
8. Documentation
The supplier or manufacturer should provide comprehensive documentation including technical drawings installation instructions operation manual and electrical schematics. These documents are essential for proper installation operation and maintenance of the feeder pillar box.
Note: This specification is a general guideline and specific requirements may vary depending on the project and application. It is recommended to consult with electrical engineers or professionals for detailed design and specification requirements.
