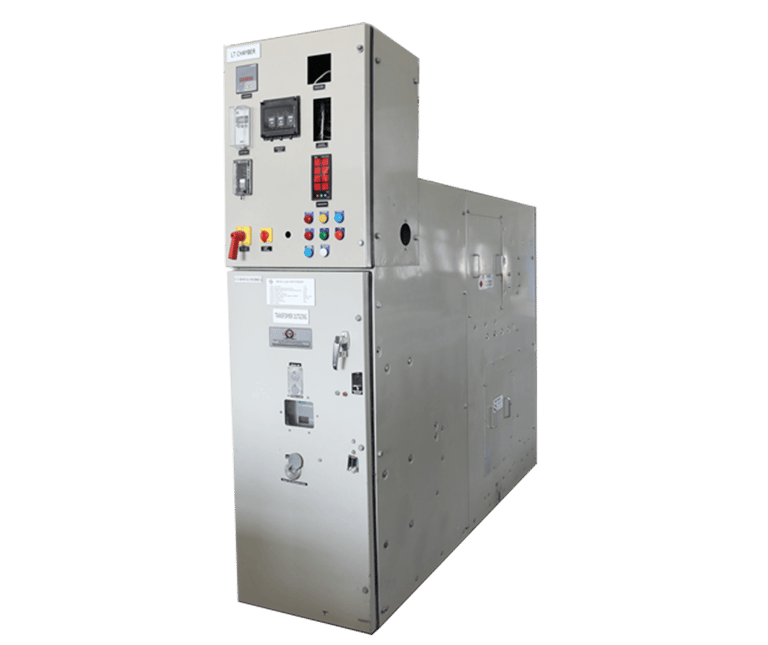

VCB Panels
VCB Panel also known as Vacuum Circuit Breaker Panel is an essential component of modern electrical systems. It plays a crucial role in ensuring the smooth and safe operation of electrical networks by protecting them from short circuits and overloads. This advanced panel technology has replaced conventional circuit breakers in many applications due to its superior performance and reliability.
The VCB Panel consists of a vacuum circuit breaker which is a type of electrical switch that can interrupt the flow of current in a circuit. It utilizes a vacuum as the arc-quenching medium allowing for fast and efficient interruption of electrical faults. This mechanism has several advantages over traditional circuit breakers including increased operational lifespan reduced maintenance requirements and enhanced safety.
One of the key benefits of a VCB Panel is its ability to withstand high fault currents without any degradation in performance. The vacuum technology provides excellent arc extinguishing capabilities ensuring that electrical faults are interrupted swiftly and without causing further damage. This feature is particularly beneficial in industrial and commercial applications where the fault currents can be extremely high.
The VCB Panel also offers improved operational reliability compared to conventional circuit breakers. Its vacuum interrupter design eliminates the risk of fire and explosion during arc interruption making it a safer choice for critical applications. Additionally the absence of moving parts in the vacuum interrupter reduces wear and tear resulting in extended service life and reduced maintenance costs.
Furthermore VCB Panels are compact and space-saving making them ideal for installations in limited spaces. The panels are designed to be user-friendly with clear indications and controls for easy operation and maintenance. They are also equipped with advanced features like protection relay systems remote monitoring capabilities and fault diagnosis mechanisms enabling efficient performance monitoring and troubleshooting.
In conclusion VCB Panel is a vital component in electrical systems providing reliable and efficient protection against electrical faults. Its vacuum circuit breaker technology offers superior arc-quenching capabilities increased operational reliability and enhanced safety. With its compact design and advanced features the VCB Panel is a smart choice for various industrial and commercial applications. Investing in a high-quality VCB Panel ensures the smooth and uninterrupted operation of electrical networks ultimately contributing to the overall efficiency and productivity of any facility.
A VCB panel or Vacuum Circuit Breaker panel is an electrical distribution panel that incorporates vacuum circuit breakers as the main protective device. It is commonly used for medium-voltage electrical systems typically ranging from 3.3 kV to 36 kV.
Here are some common technical specifications of a VCB panel:
1. Voltage rating: VCB panels are available in various voltage ratings depending on the application requirements. The most common ratings include 3.3 kV 6.6 kV 11 kV 15 kV 22 kV and 33 kV.
2. Current rating: VCB panels are designed to handle specific current levels. The current rating of the panel is usually determined by the selection of the vacuum circuit breakers installed. It can range from a few hundred amperes to several thousand amperes.
3. Short circuit breaking capacity: The short circuit breaking capacity refers to the maximum fault current that the VCB panel can safely interrupt without causing significant damage. It is an important consideration for selecting the right panel based on the system's fault level requirements.
4. Number of circuit breakers: VCB panels can have single or multiple vacuum circuit breakers depending on the application. The number of circuit breakers is determined by the distribution requirements and the number of circuits to be protected.
5. Busbar system: The VCB panel includes a busbar system that connects the incoming and outgoing power supply lines with the circuit breakers. The busbar system should be designed for the rated current and fault level of the panel.
6. Control and protection system: VCB panels are equipped with a control and protection system that includes various components like relays meters indicators and control switches. These components ensure the safe and efficient operation of the circuit breakers and provide essential information about the electrical parameters.
7. Enclosure type: VCB panels are housed in enclosures made of insulating materials like metal-clad or metal-enclosed types. The enclosure provides protection against accidental contact dust and moisture.
8. Fault indication and recording: Some advanced VCB panels come with fault indication and recording systems. These systems provide information about the fault location fault type and fault duration which helps in troubleshooting and maintenance.
9. Interlocking and safety features: VCB panels include interlocking mechanisms to ensure proper sequencing and coordination between the circuit breakers and other control devices. Additionally safety features like door interlocks earthing switches and safety shutters are incorporated to protect personnel during maintenance.
10. Testing and certification: VCB panels should be tested and certified to meet relevant standards such as IEC or ANSI to ensure their performance safety and reliability.
It's important to note that the technical specifications of a VCB panel may vary depending on the manufacturer and specific application requirements.
