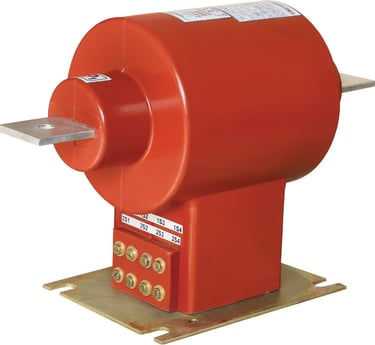

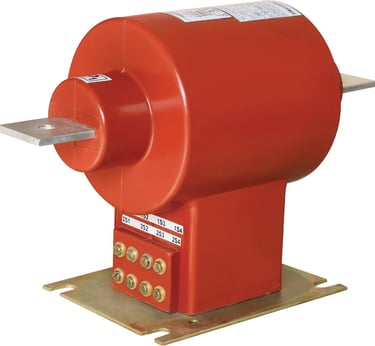

Resin cast Current Transformer
Resin cast current transformers are versatile and reliable devices used in electrical power systems for measuring and monitoring electrical currents. They play a critical role in ensuring the accuracy of current measurements and providing safe and efficient operation of power systems.
Resin casting is a popular technique used in the manufacturing of current transformers. In this process the windings and the core of the transformer are encapsulated in epoxy resin creating a single solid unit. This resin casting provides excellent protection and insulation to the transformer ensuring its robustness and durability even in harsh environments.
One of the key advantages of resin cast current transformers is their ability to offer high accuracy and precision in current measurements. The resin casting process allows for the elimination of air gaps between windings and core minimizing the risk of flux leakage and eddy current losses. This results in improved accuracy particularly in low current measurement applications.
Resin cast current transformers are also known for their excellent insulation properties. The epoxy resin used in the casting process provides high dielectric strength preventing electrical breakdown and ensuring insulation reliability. This makes resin cast transformers suitable for use in high voltage systems and areas with high levels of electrical noise.
Another benefit of resin cast current transformers is their compact and lightweight design. Compared to traditional transformer designs resin cast transformers have a smaller footprint and reduced weight. This makes them easier to install and transport saving both time and effort during system setup and maintenance.
Resin cast transformers also offer enhanced mechanical protection. The epoxy resin encapsulation forms a strong and rigid enclosure around the windings and core making them resistant to mechanical vibrations shocks and impacts. This improves the overall reliability of the transformer reducing the risk of damage and failure in demanding operating conditions.
Furthermore resin cast current transformers are highly resistant to environmental factors such as moisture dust and chemicals. The epoxy resin provides a barrier that protects the transformer from these external elements ensuring long-term performance and preventing degradation over time. This makes resin cast transformers suitable for various industrial applications including power generation transmission distribution and renewable energy systems.
In conclusion resin cast current transformers offer several advantages over traditional transformer designs. They provide high accuracy current measurements excellent insulation properties compact and lightweight design enhanced mechanical protection and resistance to environmental factors. With these features resin cast current transformers are reliable and efficient devices that contribute to the safe and reliable operation of electrical power systems.
Technical specifications:
Resin cast current transformers (CTs) are commonly used in electric power systems for the measurement and protection of electrical currents. They are designed to transform high currents into a standardized and manageable level suitable for measurement and control purposes.
Here are some key technical specifications of resin cast current transformers:
1. Rated Current: Resin cast CTs are available in various rated current values typically ranging from a few Amperes up to several thousand Amperes. The rated current represents the maximum continuous current that the CT can accurately transform.
2. Primary Current: This refers to the current that flows through the primary winding of the CT. It is the actual current being measured or monitored.
3. Secondary Current: The resin cast CT has a secondary winding that provides a reduced current proportional to the primary current. The most common secondary current ratings are 1A and 5A although other values are also used depending on the application.
4. Accuracy Class: CTs are classified based on their accuracy in transforming the primary current into a proportional secondary current. Standard accuracy classes for resin cast CTs include 0.1 0.2 0.5 and 1.0 with 0.1 being the most accurate. Higher accuracy classes are typically used in precision measurement applications.
5. Burden: The burden refers to the load impedance on the secondary winding of the CT. It is defined in terms of VA (volt-ampere) or more commonly in the secondary burden resistance value in ohms. The burden must be within the specified limits to ensure accurate and reliable operation of the CT.
6. Insulation Level: Resin cast CTs have a high dielectric strength to withstand high voltage levels. The insulation level is expressed in terms of a voltage rating such as 12 kV or 24 kV which indicates the maximum voltage that the CT can safely withstand.
7. Frequency: Resin cast CTs are typically designed to operate at line frequencies of 50 Hz or 60 Hz depending on the specific power system requirements. Some CTs may also be suitable for other frequencies such as 400 Hz in certain applications.
8. Operating Temperature: Resin cast CTs are designed to operate within a specified temperature range. The temperature range can vary depending on the specific CT model and application requirements. Common temperature ranges include -30°C to +70°C or -40°C to +85°C.
9. Enclosure: Resin cast CTs are usually housed in an enclosure made of epoxy resin or other insulating materials. The enclosure provides mechanical protection and insulation for the internal components of the CT ensuring safe operation in various environmental conditions.
10. Mounting: Resin cast CTs are commonly available in various mounting options including window-type bushing-type and bar-type. The mounting method depends on the specific application and installation requirements.
These are just some of the key technical specifications of resin cast current transformers. It's worth noting that there may be variations in specifications depending on the manufacturer and the specific requirements of the application.
