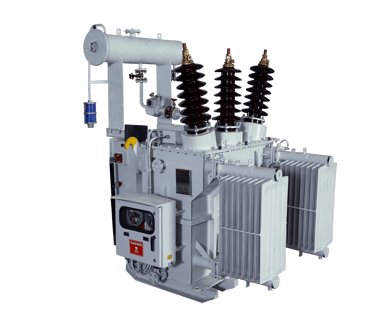

Oil cooled Distribution Transformers
Oil cooled distribution transformers are an integral part of electrical power distribution systems. They play a crucial role in stepping down high voltage electricity from the transmission grid to safer and more manageable levels for commercial industrial and residential use. These transformers are designed to efficiently transfer electrical energy while ensuring stable and reliable power supply.
One key feature of oil cooled distribution transformers is their cooling system. Unlike dry-type transformers that use air as the cooling medium oil cooled transformers rely on mineral oil to dissipate heat and regulate temperature. The oil acts as an efficient heat transfer medium drawing heat away from the transformer's core and windings. This cooling method allows the transformer to operate at optimal temperature preventing overloads and ensuring longevity.
The oil used in these transformers is specifically selected for its dielectric properties which provide insulation and withstand electrical stress. It also serves as a coolant extracting heat generated during transformer operation. The oil flows through tightly wound copper or aluminum windings providing effective cooling and maintaining a constant temperature profile.
To enhance the cooling capacity oil cooled distribution transformers often feature cooling fins or radiators. These external structures increase the surface area exposed to ambient air facilitating heat dissipation. Air circulating around the radiators removes heat absorbed by the oil ensuring efficient cooling even in high-load conditions. Some transformers may also employ oil pumps or fans to facilitate oil circulation and enhance cooling efficiency.
The use of oil as a cooling medium offers several advantages. Firstly oil has high thermal conductivity meaning it can efficiently transfer heat away from the transformer's critical components. It also has high dielectric strength meaning it can withstand high electrical stress without breakdown ensuring effective insulation. Additionally oil is readily available cost-effective and long-lasting making it a popular choice for transformer cooling.
Maintenance is an essential aspect of oil cooled distribution transformers. Regular oil sampling and analysis are performed to monitor the condition of the oil and detect any potential issues such as moisture content or contamination. Periodic maintenance includes oil filtration which removes impurities and prolongs the lifespan of the oil. In case of any faults or leaks the oil can be easily replaced or repaired ensuring the uninterrupted operation of the transformer.
However it is important to note that oil cooled distribution transformers also have some disadvantages. The use of oil for cooling necessitates proper containment systems and measures to prevent oil spills or leakage which can be harmful to the environment. Safety precautions such as oil containment pans or bund walls are therefore essential.
In conclusion oil cooled distribution transformers are a vital component of power distribution systems. They use oil as a cooling and insulating medium allowing for efficient heat dissipation and reliable operation. While requiring regular maintenance and environmental safeguards these transformers provide a stable and safe electricity supply for a wide range of applications.
Oil cooled distribution transformers are commonly used in electrical power distribution systems to step down high-voltage electricity to low-voltage levels suitable for use in commercial industrial and residential buildings. These transformers can be found in substations power plants and various other electrical infrastructure installations.
The technical specifications of an oil cooled distribution transformer may vary depending on the specific requirements of the application but here are some common specifications:
1. Power Rating: This refers to the amount of power the transformer can handle usually measured in kilovolt-amperes (kVA) or megavolt-amperes (MVA). Typical power ratings of oil cooled distribution transformers can range from a few kVA to several MVA.
2. Voltage Ratio: Oil cooled transformers are designed to convert high-voltage electrical energy to lower-voltage levels. The voltage ratio indicates the ratio between the primary (input) voltage and the secondary (output) voltage. It is typically expressed as a numerical ratio such as 11kV/415V.
3. Frequency: The frequency of the electrical system plays a crucial role in transformer design. Oil cooled distribution transformers are commonly designed to operate at standard power frequencies such as 50 Hz or 60 Hz.
4. Insulation Class: Transformers require appropriate insulation to withstand the electrical stresses and ensure safe and reliable operation. Insulation classes such as Class A B F or H indicate the maximum allowable temperature rise at the transformer's hottest spot.
5. Cooling System: Oil-cooled transformers utilize oil as a coolant to dissipate heat generated during operation. The cooling system can include features such as radiators cooling fans and oil pumps to maintain optimum operating temperatures.
6. Efficiency: Transformers have an efficiency rating that indicates the percentage of input power converted to output power without losses. Higher efficiency transformers minimize energy losses leading to cost savings and reduced environmental impact.
7. Winding Material: The windings inside the transformer can be made of copper or aluminum. Copper windings offer higher conductivity but are more expensive while aluminum windings provide cost savings but have lower conductivity.
8. Protection Features: Oil cooled distribution transformers may include various protection features such as overcurrent protection over-temperature protection and surge protection to safeguard the transformer from potential faults and disturbances in the electrical system.
9. Standards and Certifications: Transformers are manufactured following specific standards and may carry certifications from recognized organizations such as the International Electrotechnical Commission (IEC) or the American National Standards Institute (ANSI).
It's important to note that these are general specifications and the detailed specifications of an oil cooled distribution transformer may vary based on the specific requirements of the installation local regulations and the preferences of the manufacturer. It is always recommended to consult the manufacturer's datasheets or technical documentation for precise specifications.
